1 year warranty for the entire vehicle,
including (motor, battery, electronic control), excluding human damage
including (motor, battery, electronic control), excluding human damage

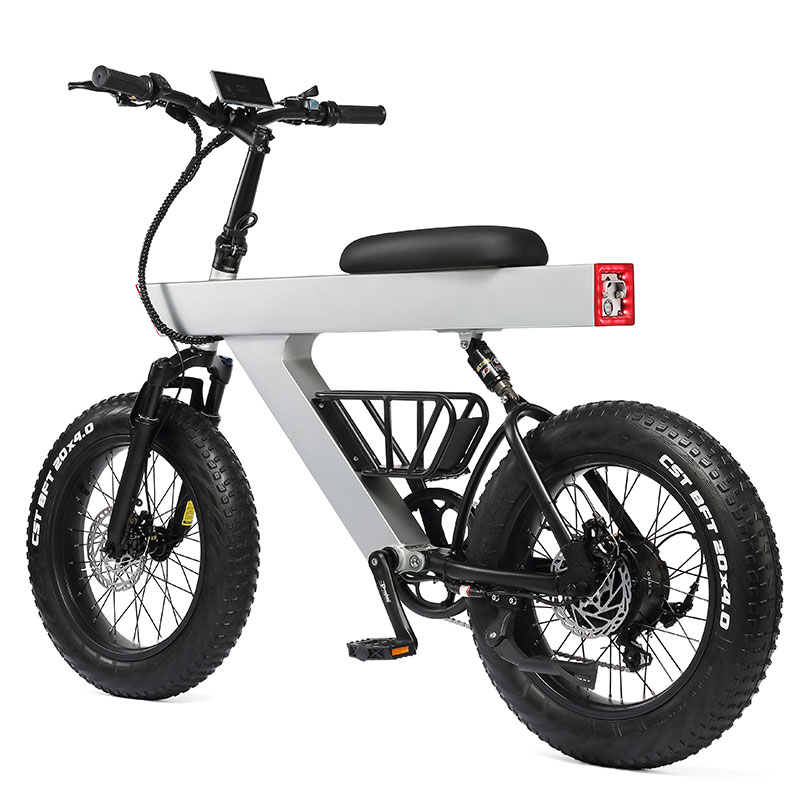

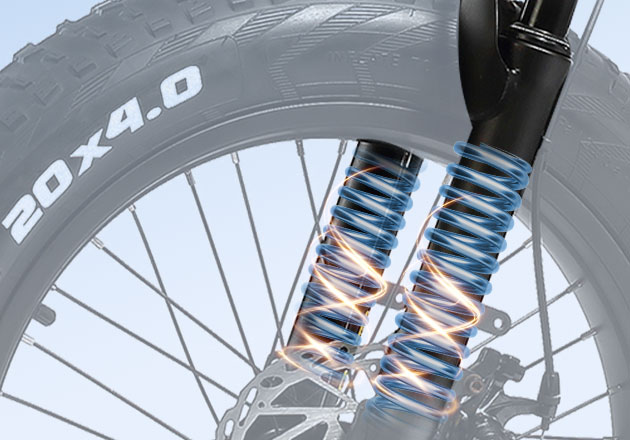

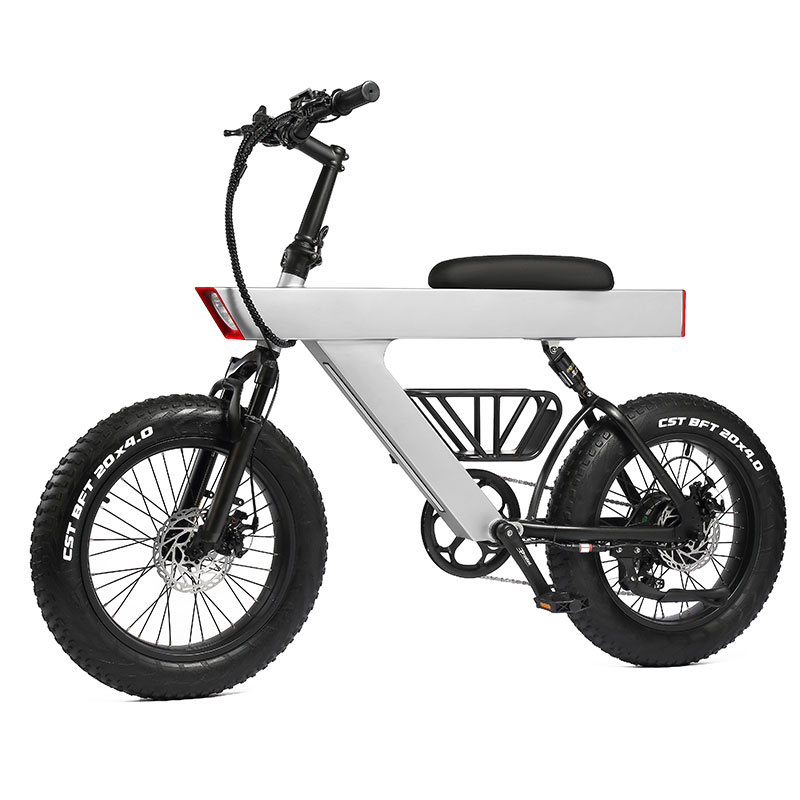

Q1-750W Front fork/rear suspension dual shock absorption
Lightweight design, technological industrial aesthetics
In Stock
COLOR: yellow
-
Have questions?
......
Happiness in Motion

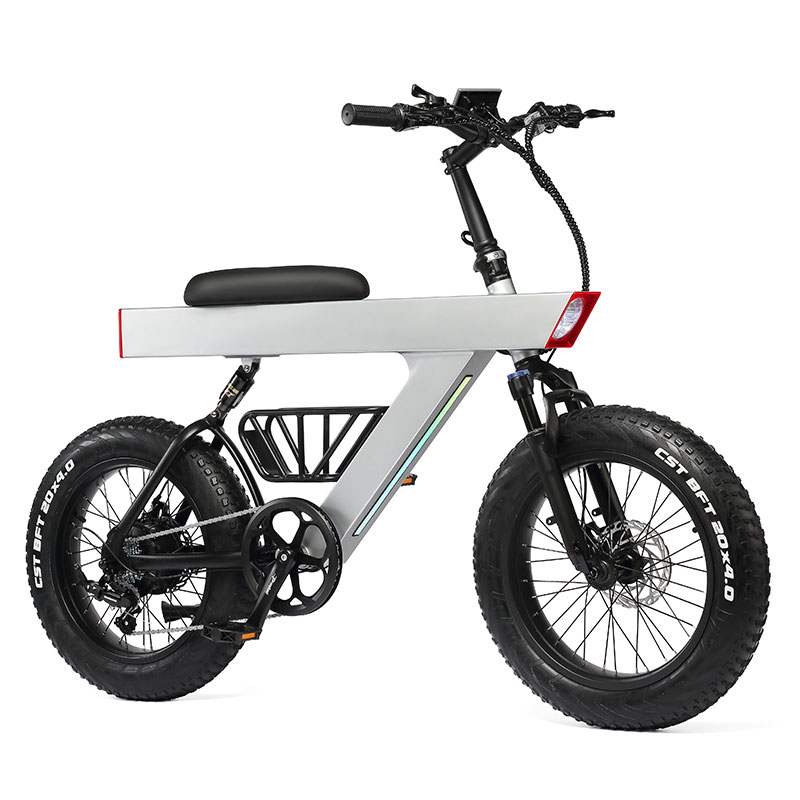

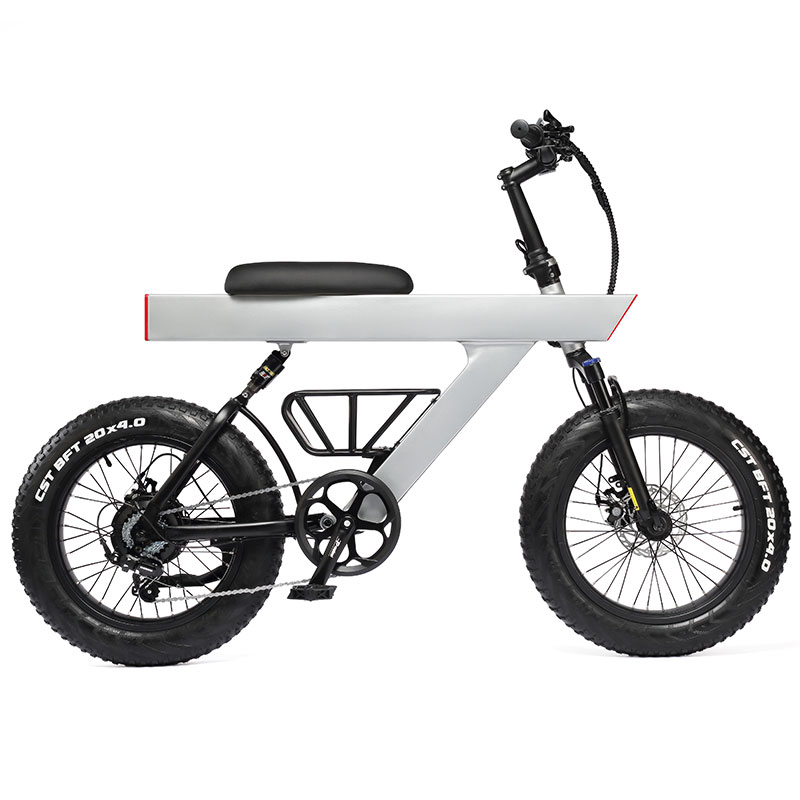

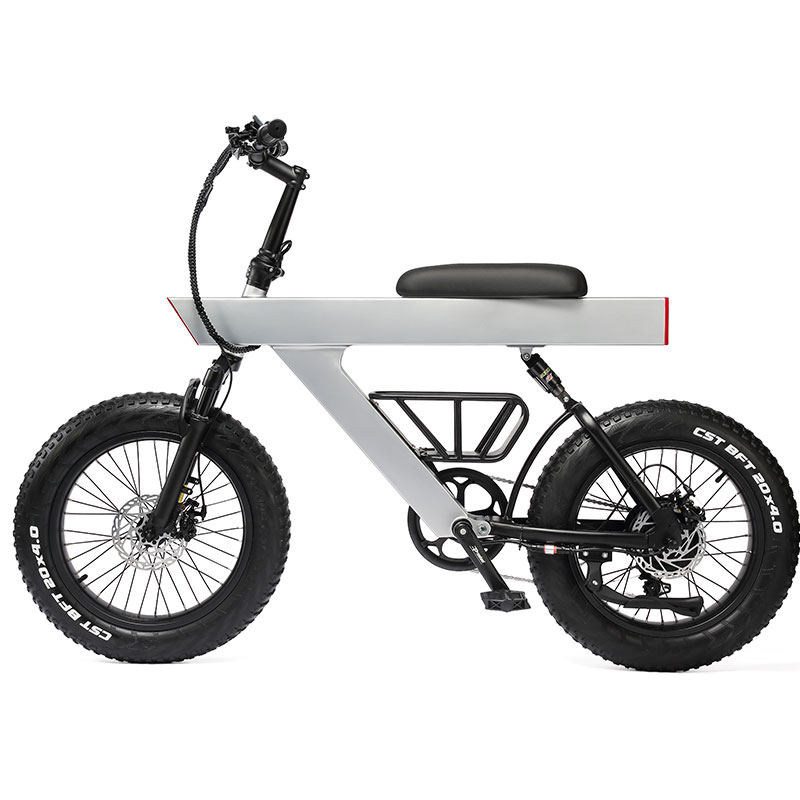

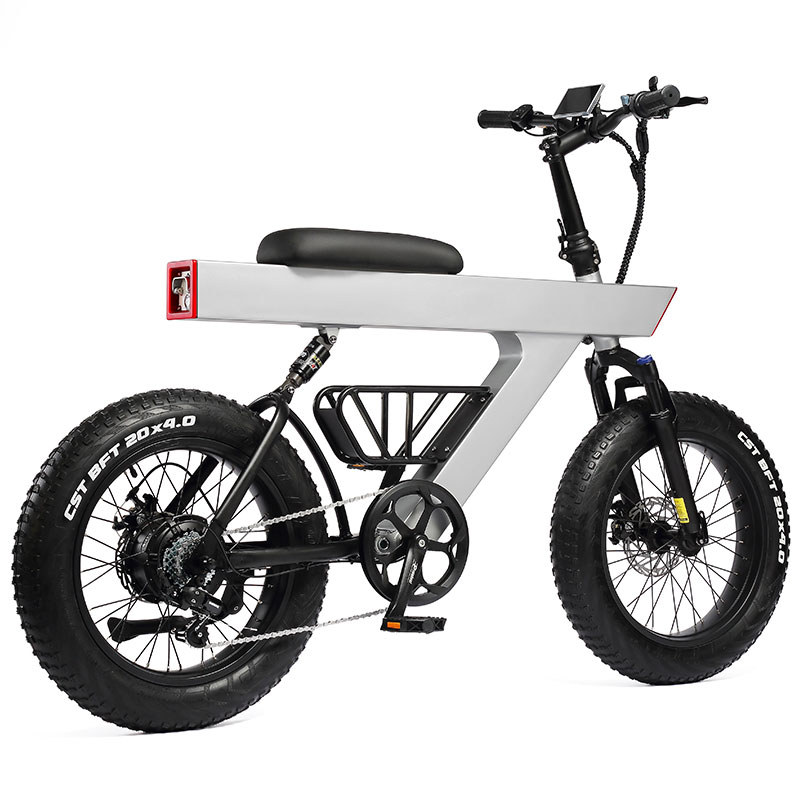

E-Bike Q1
......
Mecha Minimalist Cyberpunk
Differentiated low-cost off-road, not following the SUP73 style, with a distinctive appearance
All-terrian Off-road tire
It has extra-wide tyres that grip in any conditions, incredible stability and an oversized dose of agility.
Experience multiple mode switching
With 3 built-in riding modes. Can be easily switched during the ride. Different riding needs can be handled with ease.

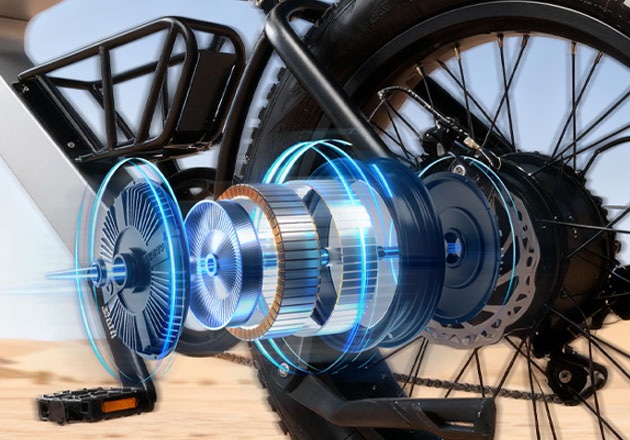

Big Power, Start to lead
750W high power brushless DC motor, high torque Strengthen the ability to overcome obstacles, black technology,

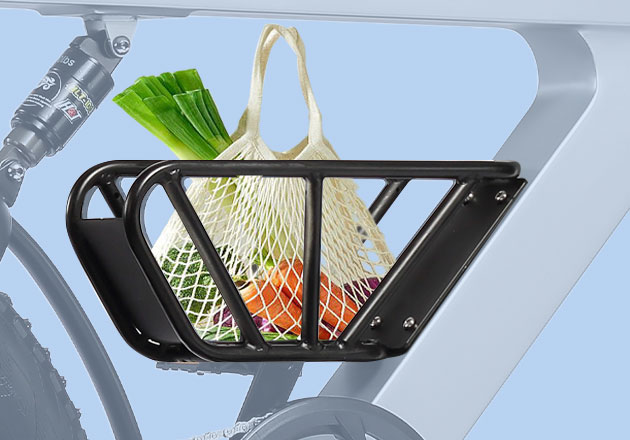

Details are quality
| Specification | Description |
|---|---|
| Model | Q1 |
| Net weight | 35kg |
| Frame material | Steels |
| Tire size | 20in*4.0 |
| Motor | 48V/750W |
| Motor type | Brushless DC motor-High speed gear (5:1) |
| Battery capacity | 15Ah/720Wh |
| Charger parameters | 54.6V/2A |
| Maximum speed | 55km/h |
| Pure electric range | 40-50km |
| Power-assisted range | 100-110km |
| Open size | 1600*645*950mm |
| Specification | Description |
|---|---|
| Climbing angle | 25° |
| Maximum load | 120kg |
| Riding mode | Pedaling manually/Electric motor assistant/E-powered |
| Charging time | 9-10h |
| Seat height | Liftable |
| Battery removable function | Push-in type with mechanical lock |
| Shock absorption mode | Front shock absorber |
| Mechanical shifting | 7 speed mechanical transmission system(shimano) |
| Braking mode | Front/rear disc brake |
| Assist mode | Hall sensor, 3 speed power adjustment |
| Lights | LED |
| Protection levet | IPX4 |
...
Seat*1
Pedal*2
Charger*1
Wrench*2
User Manual*1
